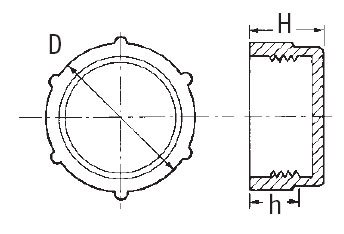

Capuchones protectores roscados
SR 1018
Polietileno rojo de Baja Densidad
- Ampliamente usados en la industria hidráulica, automotriz y de ingeniería
- Protegen los componentes roscados contra polvo, humedad y golpes
Todos los derechos reservados 2009. La empresa piezasdeplastico.com es un distribuidor de piezas plástico y moldes específicos.
UNF
Métrico
Part No.
12100
12101
12102
12103
12104
12650
12105
12651
12106
12107
12108
12845
12109
12110
12111
12967
12122
12123
12124
12126
|
D (mm)
9.9
11.9
13.8
14.0
15.9
16.0
17.9
18.0
19.7
21.9
24.3
24.4
26.2
27.2
28.3
32.0
34.0
38.8
44.5
54.7
|
H (mm)
10.0
10.0
12.0
12.0
12.0
20.6
12.0
21.0
14.0
14.0
13.8
24.5
14.0
14.0
14.0
14.0
14.0
16.0
16.0
16.0
|
h (mm)
7.0
7.5
9.5
9.5
9.5
9.2
9.5
9.0
9.5
9.5
11.5
17.5
11.5
11.5
11.5
12.4
11.5
13.5
13.5
13.5
|
Tamaño de la Rosca
M8 × 1
M10 × 1
M12 × 1
M12 × 1.5
M14 × 1.5
M14 × 1.5
M16 × 1.5
M16 × 1.5
M18 × 1.5
M20 × 1.5
M22 × 1.5
M22 × 1.5
M24 × 1.5
M25 × 1.5
M26 × 1.5
M28 × 1.5
M30 × 2
M36 × 2
M42 × 2
M52 × 2
|
Cant. por Bolsa
5000
5000
5000
5000
5000
5000
5000
5000
4000
4000
3000
2500
3000
2000
2000
2000
1500
1500
500
500
|
BSP
Part No.
10251
12652
10332
10528
11041
10653
12847
12825
11089
12075
12826
10685
10163
10151
12654
10185
11053
11804
|
D (mm)
11.0
13.3
13.3
14.5
16.5
18.2
21.7
23.3
24.9
25.3
27.6
29.4
32.7
36.4
37.4
38.9
44.8
50.3
|
H (mm)
8.3
13.7
12.9
13.5
13.5
15.6
13.8
15.3
20.2
20.0
17.2
19.0
19.1
22.2
24.5
21.7
22.0
25.0
|
h (mm)
4.0
7.8
8.0
9.5
9.5
7.5
9.5
9.3
14.4
14.0
12.0
11.0
13.0
14.5
10.5
15.2
14.0
15.0
|
Tamaño de la Rosca
3/8" × 24
7/16" × 24
7/16" × 20
1/2" × 20
9/16" × 18
5/8" × 18
3/4" × 16
13/16" × 16
7/8" × 14
7/8" × 18
1" × 14
1 1/16" × 12
1 3/16" × 12
1 5/16" × 12
1 3/8" × 12
1 7/16" × 12
1 5/8" × 12
1 7/8" × 12
|
Cant. por Bolsa
5000
5000
5000
5000
5000
5000
4000
1250
2500
2500
2500
2000
1500
1000
1000
1000
800
500
|
Part No.
10392
10559
10104
10198
11157
10205
10970
10204
10167
10432
10968
12954
12905
|
D (mm)
11.8
14.8
18.7
23.2
25.4
29.4
32.4
36.0
44.4
50.3
61.9
71.5
77.9
|
H (mm)
12.0
11.0
11.3
13.5
15.7
17.7
19.5
19.0
19.8
20.5
21.0
25.0
27.6
|
h (mm)
6.5
8.0
7.4
7.0
10.0
11.2
12.5
14.5
13.0
14.0
15.0
17.5
19.0
|
Tamaño de la Rosca
1/8" × 28
1/4" × 19
3/8" × 19
1/2" × 14
5/8" × 14
3/4" × 14
7/8" × 14
1" × 11
1 1/4" × 11
1 1/2" × 11
2" × 11
2 1/4" × 11
2 1/2" × 11
|
Cant. por Bolsa
5000
5000
5000
5000
3000
2000
1500
1500
1000
700
400
350
300
|
